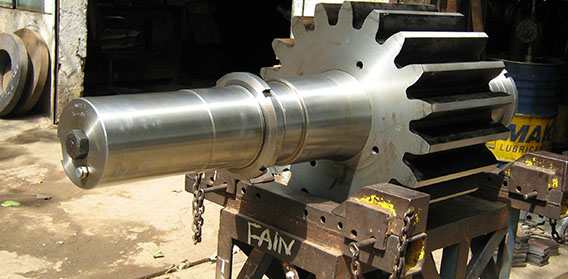

Pinion Assembly for Cooler [Fertilizer Application]
- Finish Weight : 680 kg
- Pinion Material : 42CrMo4
(Heat Treated to 260-290 BHN) - Module: 25
- No. of teeth : 19
- Shaft Material : 30CrNiMo8 (Heat Treated to 248-325 BHN)
- Finish machined & Ground all over.
- Pinion & Shaft Shrunk Fitted with Key

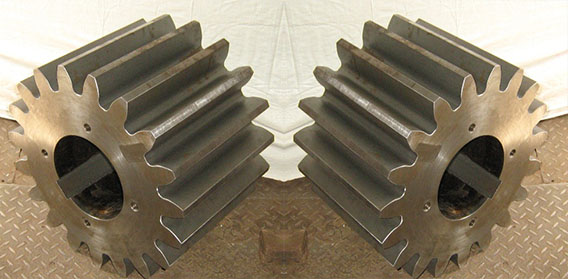

Pinion
- Material : 42CrMo4
(Heat Treated to 260-290 BHN) - Module: 25
- No. of Teeth: 19
- ID Ground for Shrink Fitting

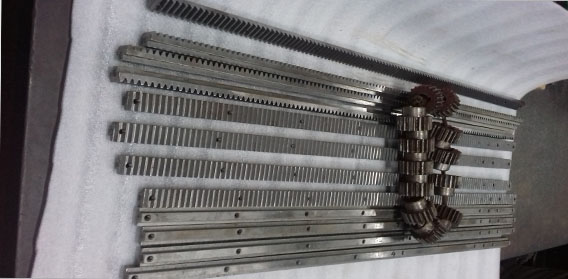

Drive Gear & Rack
- Material: AISI 1040
- Module: 2
- Pressure Angle 20º

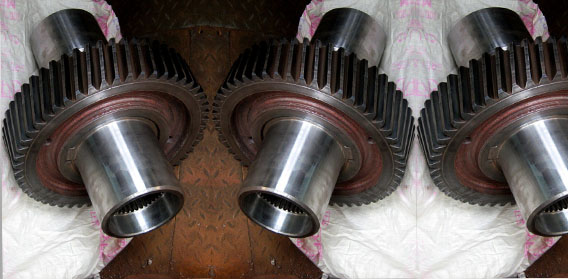

Shrink Fitted Assembly of Helical Gear with Sleeve
- For RTGC (Rubber Tire Gantry Crane)
- Port Application
