Torque Arm
We at Karma Steels Private Limited, continuously making / manufacturing Torque Arm in different sizes, weight and capacity as per customers requirement.
Karma Steels Private Limited are well known manufacturing company for torque arm or torque rod assembly.
Torque Arm function :

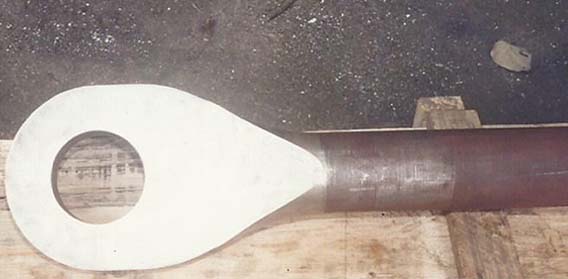

Torque Arm
- For Atox Mill No. 37.5
- Finish Wt. 95 Kg.
- Material : EN 24, Forged, Heat Treated & Finish Machined.

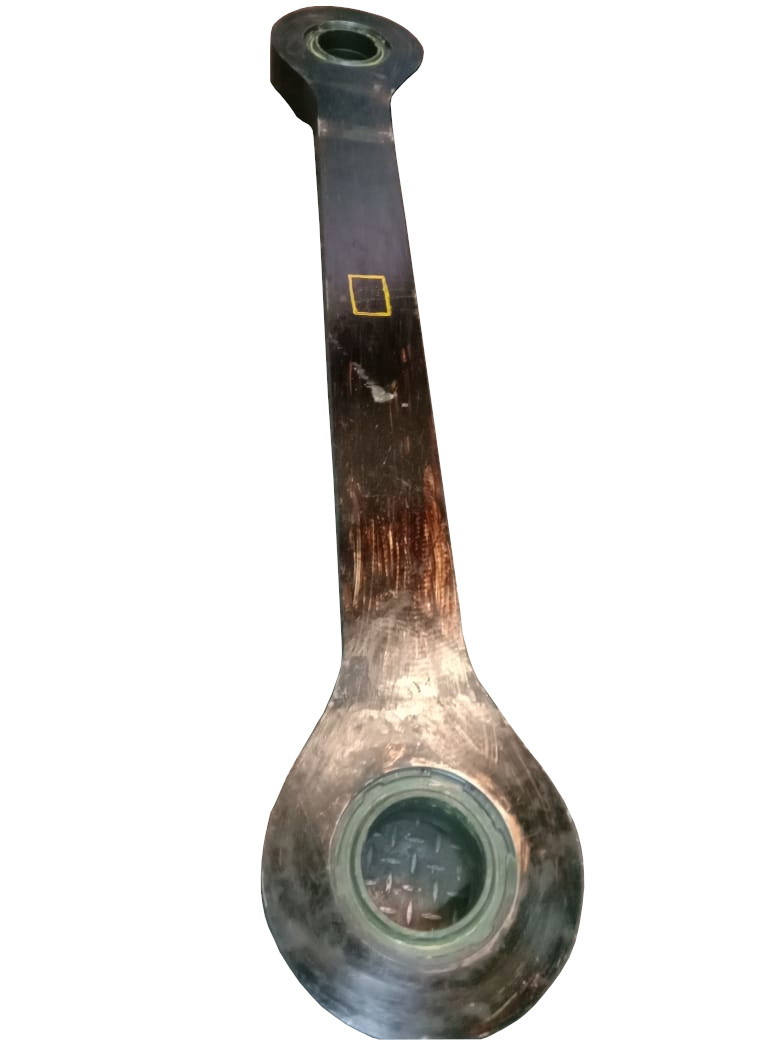

Torque Rod
For Atox Mill No. 45
Finish Wt.: 290 Kg.
Material : 34CrNiMo6, Forged, Heat Treated & Finish Machined, fitted with Radial Spherical Bearing GE140ES
Tested For : Tensile & Impact Strength, Ultrasonic Test as per SA 388
(acceptance criteria 3mm FBH).
Entire Surface area checked by Magnetic
Particle Testing.
Overall Length : 2193 mm
Hole Center Distance : 1833 +/- 0.30 mm
Eye Width : 360 mm
Thickness : 95 mm
